Packaged Pumping Systems
BELOW GROUND PUMP SYSTEMS DESIGNED AND ASSEMBLED TO SUIT YOUR REQUIREMENTS.
The System would comprise of:-
- Pump Chamber – Sized according to volume requirements, building regulations, etc.
- Pumps – Single or Twin configuration selected for duty, type of waste, distance and head.
- Control Panel, Float Switches and Alarm
- Access Cover – Pedestrian or vehicle loading. Other options include lockable & double sealed versions.

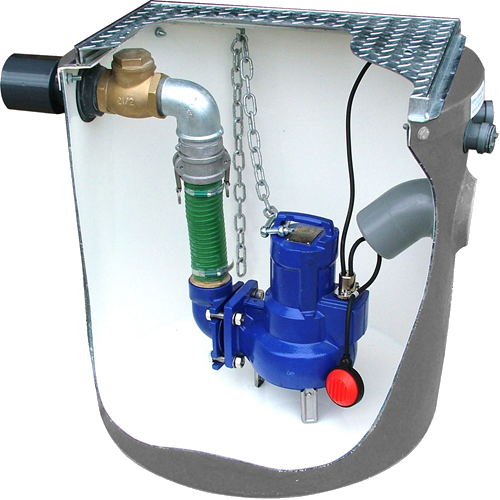

PEGPUMP 75/750 & 75/960
Packaged System generally for a single freestanding pump.
The pump on these systems is selected to meet your requirements by our experts.
- Access Frame and Cover of 450mm x 600mm
- Non-return valve & quick release coupling for a freestanding pump
- 750mm or 960mm standard depths (Bespoke depths available on request)
- 750mm nominal diameter
PEGPUMP 100
Packaged System specifically designed to fit through a standard door opening. Ideal for existing basements where access is a problem.
- Easy to Install – Easy to Own
- G.R.P Housing
- 110mm diameter Inlet
- Swing check valve and quick release coupling
- 1250mm depth
- 710mm wide
- 1020mm length

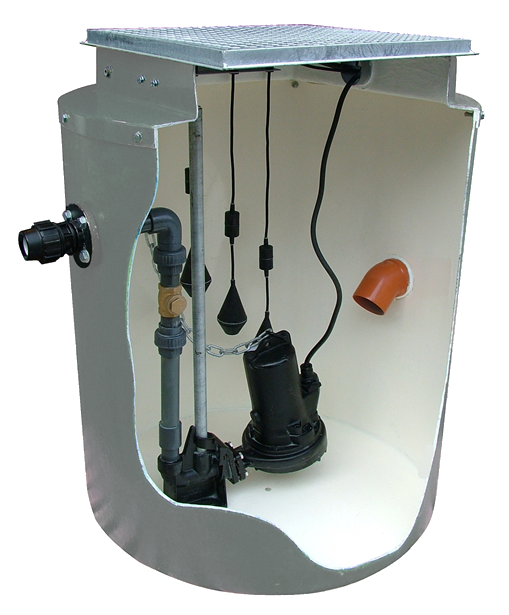

PEGPUMP 125
A compact system for areas where access isn’t a problem. Suitable for single or twin pumps with a pedestal mounted or freestanding set-up.
- Pump(s) selected to meet your requirements
- Easy to Install – Easy to Own
- Inlet size as required
- G.R.P tank
- Access frame and cover
- Standard depth 1250mm. Can easily be adapted to 1500mm deep
- 1000mm internal diameter

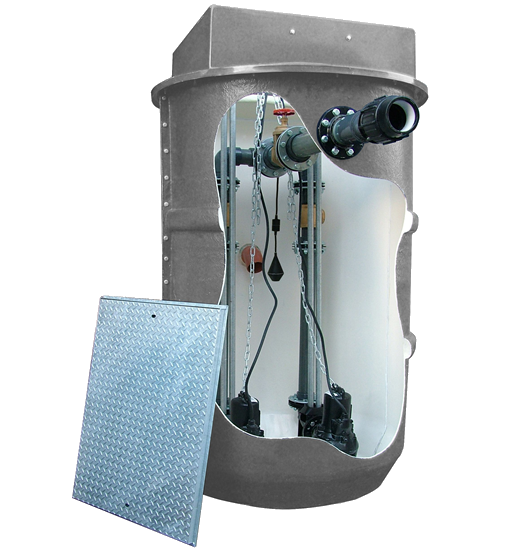

PEGPUMP 200-700
Package GRP chambers in 1000mm, 1250mm, 1500mm, 1800mm, 2100mm & 2500mm internal diameters.
- Pump(s) selected to meet your requirements
- Easy to Install – Easy to Own
- Inlet size as required
- G.R.P tank
- Access frame and cover
- Standard or bespoke depths available
